Specifications Description D2V055NF1014 is a Inverter-Crane produced by KoneCranes Inverter Type D2V Power rating class 055 Options NF1 Emission level Unlimited Special options 14

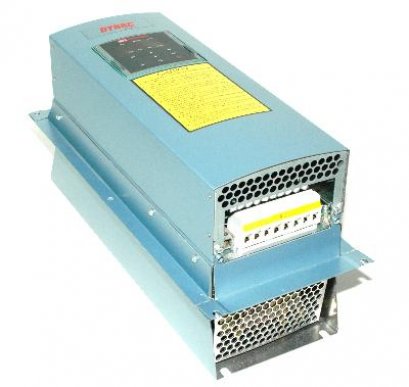

Specifications Description DAV0075NFL1N1P1 is a Inverter-Crane produced by KoneCranes Device Name DAV Power Rating Class 7.5kW Series Code CX Supply Voltage 380-500 Vac; 50/60Hz Display Type Led display, KCI label Construction Basic, through panel EMC-compatability EN61800-3 Braking Type Brake chopper Option Board CB00039, without encoder, KCI version Reserved 4 Mb Control board

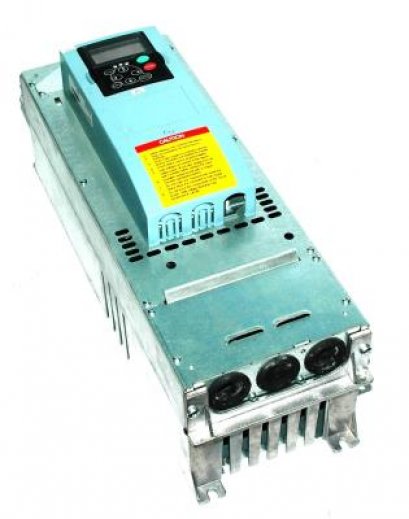

D2V015NF1034 is an Inverter-Crane manufactured by KoneCranes

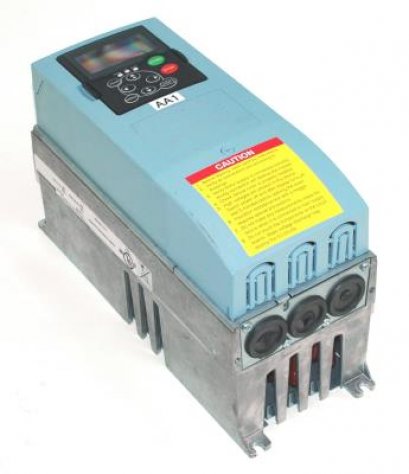

D2V005NF1004 is an Inverter-Crane manufactured by KoneCranes

Inverter Cranes Maim hoist

Un: 380-500VAC In: 261A Fn: 50/60HZ +2%

Energy support close to the consumption To help improve performance by making better use of energy, energy storage is increasingly being introduced into systems to create hybrid solutions. Various storage methods are being used but, due to reductions in battery costs and increases in energy density, battery utilization is seen as being the fastest growing and more easily integrated storage medium available today. DC/DC converters can be used to connect to sources such as batteries, super capacitors, fuel cells and solar panels. Due to the wide input range of the source voltages, for example battery, the VACON® NXP DC/DC Converter application can be used to match source voltage to a common DC bus system in order to utilize the stored energy to create the right DC bus voltage required to operate the machinery running on these hybrid systems. The VACON® NXP DC/DC Converter application can be installed in both liquid- and air-cooled VACON® NXP drive modules. Supply voltages and power range Air cooled: 3 x 380-500 V...180-1100 kW with battery voltages from 100Vdc* to 800Vdc** 3 x 525-690 V...200-1200 kW with battery voltages from 100Vdc* to 1100Vdc** Liquid cooled: 3 x 380-500 V...160-1800 kW with battery voltages from 100Vdc* to 800Vdc** 3 x 525-690 V...210-1800 kW with battery voltages from 100Vdc* to 1100Vdc** *Minimum voltage is case dependent **Depending on system DC bus voltage. Source (battery) voltage must always be lower than the DC bus voltage.

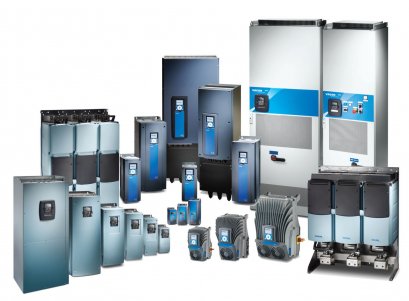

performance VACON® NXP Air Cooled drives offer precision and power to applications that require a robust and dynamic performance. Available in a complete power range up to 2 MW, they are provided as wall-mounted, standalone enclosed and IP00 modules. The drives provide optimized motor control for both induction and permanent magnet motors, and gearless drive applications and paralleling solutions for high-power motors. Fast fieldbus options and exceptional programming flexibility ensure the drives are easily integrated into any plant’s automation system. Engineering time and costs can be saved due to the high number of standardized options and reduced system complexity. Supply voltages and power range 3 x 208-240 V...0.55-90 kW 3 x 380-500 V...1.5-1200 kW with DriveSynch 1.5-4000 kW 3 x 525-690 V...2.0-2000 kW with DriveSynch 2.0-4500 kW

One drive for a wide range of applications VACON® 100 INDUSTRIAL is full of features and dedicated for a wide range of constant power/torque applications. The easy-to-use and robust motor controls improve the reliability and efficiency of all AC motor types, including induction and permanent magnet and synchronous reluctance motors. Integrated RS485 and Ethernet interfaces support all major industrial protocols making VACON 100 INDUSTRIAL easy to incorporate into all major control systems. The built-in PLC functionality enables integration of new functionality into the drive. Functional safety is improved with Safe Torque Off, which prevents the motor from generating torque on the motor shaft, Safe Stop 1 and ATEX-certified motor over-temperature protection. The wall-mountable drive modules are easy to install and operate, and the enclosed drives are provided with a wide range of integrated options. Supply voltages and power range 208-240 V...0.55-90 kW 380-500 V...1.1-630 kW 525-690 V...5.5-800 kW
